Name: Lowara Genyo Plus 16A 109120250
Brand: Lowara
SKU: genyoplus
Price: 290.64 GBP
Availability: InStock

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

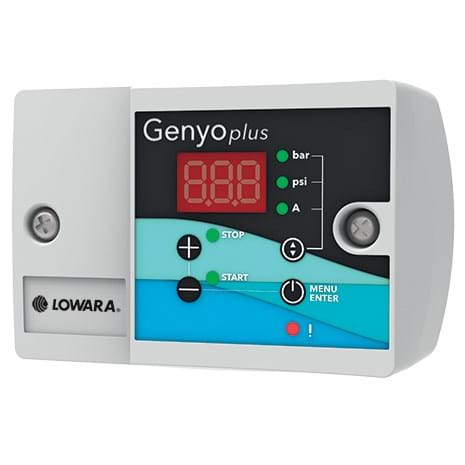

The Lowara Genyo Plus 16A (109120250) is an electronic pressure switch with an integrated digital pressure gauge and full pump protection, controlling single-phase pumps up to 2.2 kW (3 HP) on a 110–230V supply.

Three operating modes — differential, reverse and synchronised — with overcurrent, dry-running (with automatic reset test) and fast-cycling protection. It is WRAS certified for drinking water and can run in parallel with a second unit to control a two-pump booster set.

16A

Max. current

0.5–7 bar

Cut-in range

2.2 kW

Max. pump

WRAS

Certified

WRAS certifiedDigital pressure gaugeDry-run protectionUp to 2.2 kWPart no. 109120250

Check your pump’s current and the pressure you need before ordering. Not sure this is the right model? Send us your application details and we’ll confirm before you order.

Full Description

More about this product

Full Description

Key specifications

Model	Lowara Genyo Plus 16A
Lowara part no.	109120250
Type	Electronic pressure switch with digital gauge
Max. current	16A inductive
Pressure setting	Adjustable cut-in 0.5–7 bar and cut-out 1–8 bar via the display
Supply	Single phase 110–230V, 50/60 Hz
Max. pump power	2.2 kW (3 HP)
Cut-in range	0.5–7 bar
Cut-out range	1–8 bar
Differential	0.5–1.5 bar min. (adjustable), 7.5 bar max.
Max. pressure	PN 8 bar
Protection	IP55
Max. ambient temperature	50°C
Connection	Rp ¼″
Dimensions (L × H × D)	112 × 75 × 75 mm
Approval	WRAS certified

Features

Digital display

Integrated pressure gauge with easy set-up of cut-in and cut-out pressures.

Full protection

Overcurrent, dry-running with automatic reset test, and fast-cycling (leak) alarm, with live current reading.

Three modes

Differential, reverse and synchronised operation.

Twin-pump ready

Two units can run in parallel to manage a two-pump booster set and balance run times.

WRAS certified

Approved for drinking water use.

Built for

Domestic pressure boosting

Single and multi-family homes.

Borehole & well supply

Pressure control on submersible pumps.

Garden & irrigation

Steady pressure for small irrigation and watering.

Leisure & public

Campsites, sports facilities and bathing establishments.

FAQs

What size pump can it control?

Single-phase pumps up to 2.2 kW (3 HP), 16A.

Can it run a twin-pump set?

Yes — two Genyo Plus units can work in parallel to control a two-pump booster set and share the duty.

Should I fit a pressure vessel with it?

Lowara recommend pairing Genyo Plus with a pressure vessel to extend pump life and save energy.

Is it approved for drinking water?

Yes — the Genyo Plus is WRAS certified.

Additional Information

Specifications

Downloads

brochure PDF
Download
manual PDF
Download
