Grundfos PM1 22 96848701 to suit JP5 & JP6
In stock
- Established 1975
- Trusted by thousands of customers
Grundfos Pressure Managers

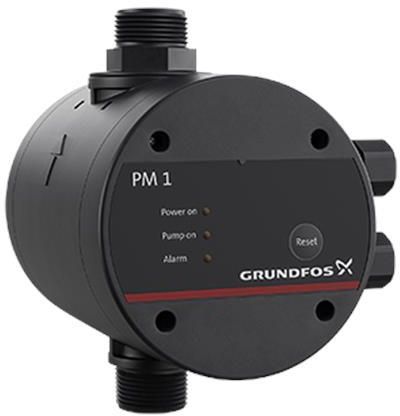

The PM1 22 is a pressure manager for use with the Grundfos JP5 and JP6 booster pumps,CM pumps and SQ 3" borehole pumps.
The PM1 is suitable for applications where start/stop of pump according to consumption is needed. It is the basic control solution offering start at 2.2 bar.
The PM 1 starts the pump when the start pressure is reached, and the pump keeps running as long as there is a flow and offers dry-running protection and cycling alarm for increased safety.
More about this product
- Single phase – 220 to 240v
- Max Current 6A
- Max liquid temp – 40 deg C
- Cut in 2.2bar
- Cut out at no flow
Specifications
| Product name: | PM 1 |
| Product No: | 96848701 |
| EAN number: | 5700311918210 |
| Technical | |
|---|---|
| Return valve: | YES |
| Tank volume: | 0.1 l |
| Installation | |
|---|---|
| Maximum ambient temperature: | 50 °C |
| Cut-in pressure: | 2.2 bar |
| Inlet connect: | G1" |
| Outlet connect: | G1" |
| Inlet thread: | External |
| Outlet thread: | External |
| Pres. Read-out: | NO |
| Liquid | |
|---|---|
| Liquid temperature range: | 0 .. 40 °C |
| Electrical data | |
|---|---|
| P1 max.: | 1200 W |
| Mains frequency: | 50 Hz |
| Rated voltage: | 220-240 V |
| I MAX: | 6 A |
| Enclosure class (IEC 34-5): | IP65 |
| Controls | |
|---|---|
| Dry running protection: | YES |
| Others | |
|---|---|
| Net weight: | 0.89 kg |
| Gross weight: | 1.65 kg |
| Shipping volume: | 0.008 m³ |
| Approvals: | CE,C-TICK,EAC,WEEE |
| Country of origin: | IT |
| Custom tariff no.: | 85371098 |
