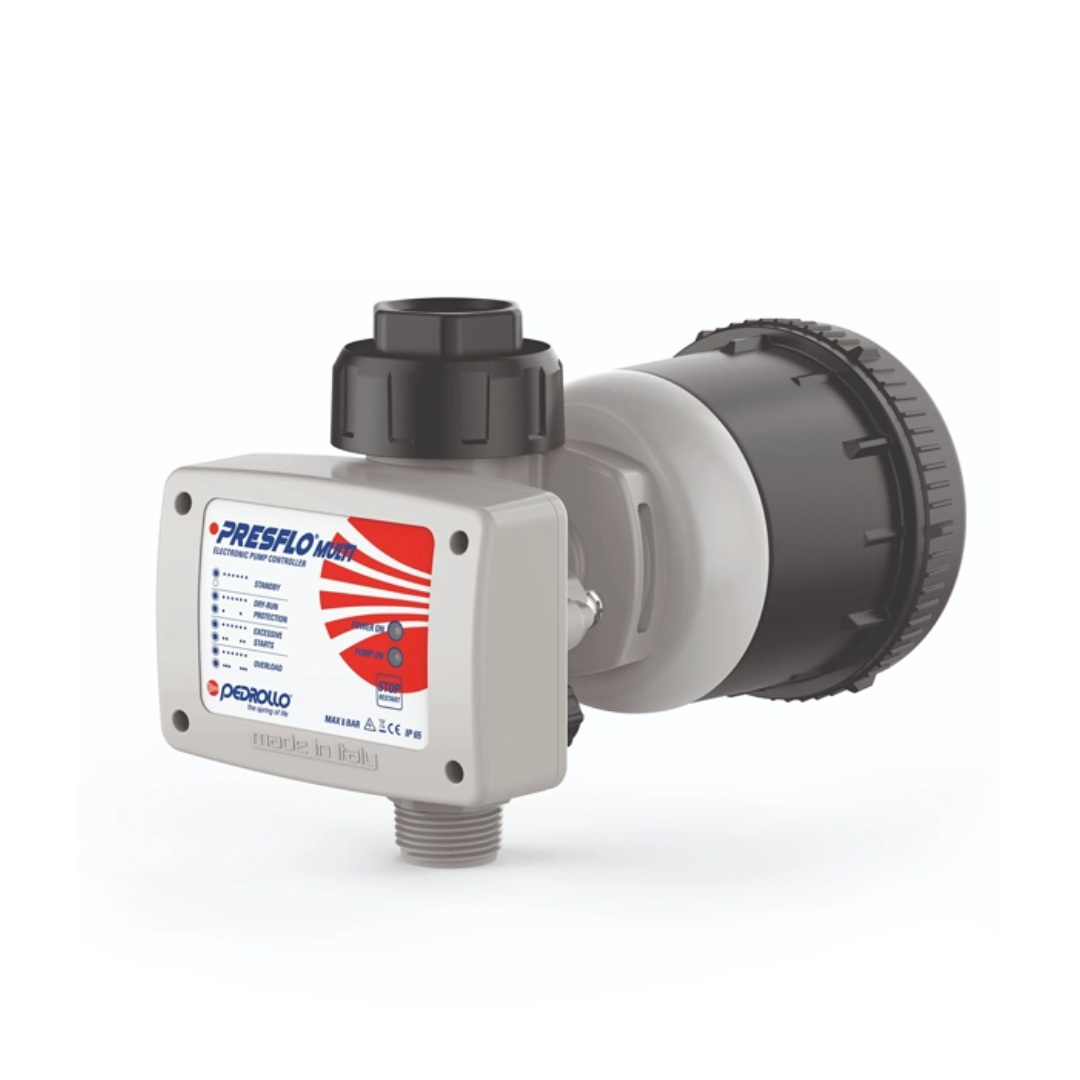

DG Flow PRESFLO Pump Controller
DG Flow PRESFLO DG/PRESFLOMULTI 230v
- Established 1975
- Trusted by thousands of customers
DG Flow PRESFLO DG/PRESFLOMULTI 230v
The PRESFLO MULTI pressure sensing pump controller automatically starts and stops the pump. Features Dry Run Protection & Auto Reset.
More about this product
Overview
The PRESFLO MULTI pressure sensing pump controller automatically starts and stops the pump. Features Dry Run Protection & Auto Reset.
Free Positioning – Vertical, Horizontal, or any angle.
Excessively Frequent Starts – Protection with auto reset.
3 Pieces Union – integrated – Avoiding the need for expensive 3 pieces unions.
Non-Return Valve – built-in with easy inspection – Avoid the need to install one.
Pressure Gauge – easy-to-add – Optional: it can be added anytime.
1-litre Diaphragm Water Tank – Preloaded at 1.5 bar.
Adjustable Start Pressure – Easily and intuitively by turning a screw using the supplied screwdriver.
Carefully check the electric and hydraulic features and make sure they comply with those of the pump and the system, but in particular:
Protections: Dry Run / Frequent Starts / Over Current.
Key features
- Used on Powertank FIXED speed units.
- Water Accumulator – Built-in
- Non-Return Valve – Built-in
- 3 Pieces Union – Integrated
- IP65 – Enclosure
- Resin Protected PCB Electronic Board
- Dry Run – Protection with auto reset
- 1 ltr tank
- Pump Matching Essential Check
- Presflo 1.5 bars start pressure requires: pump head of at least 2.5 bars &; the water column between the device and the highest user point; must not exceed 15 meters – less 2 meters tolerance = 13 mtrs
- Max Pump Power: 1.5Kw /
- Start Pressure: 1.0 – 5.0 bar
- Max Current: 16A
- Water Storage: 1 litre tank
- Connections: 1″ BSP
- IP Protection: IP65
Specification
| Product | DG Flow PRESFLO DG/PRESFLOMULTI 230v |
|---|---|
| Supply | 230 V single-phase |
| Max. flow | 2 l/min |
| Max. pressure | 8 bar |
| Protection | IP65 |
| Max. liquid temperature | 40 °C |
