DAB ED Control Panels

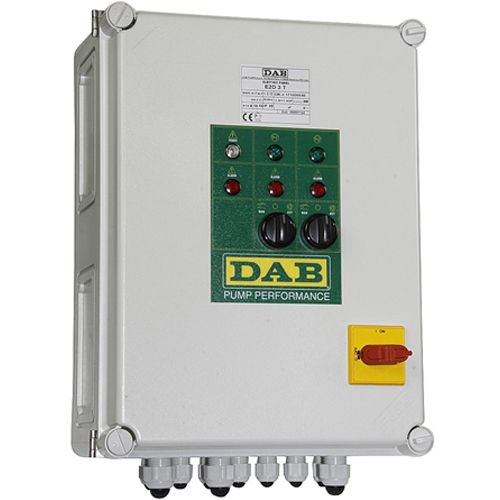

DAB E2D2M MY15 Control Panel for Two Pumps 60170021
In stock
- Established 1975
- Trusted by thousands of customers
This DAB Control Panel offers automatic protection and control.
More about this product
See below for further details on the series:
- Offering automatic protection and control through digital controls
- Supplied on self-extinguishing thermoplastic material box with wall fastening bracket
- Self-protected, and protects the electric pump from overload, short circuit and power loss, with manual reset
- Automatic reset for temperature protection
- Supplied on the box in self-extinguishing thermoplastic material and in metal models E2D50TSD and E2D60TSD, complete with brackets for wall mounting
- Self-protected transformer for the power supply of the external controls
- Exchange model for the alternation of starting pumps
- Terminals for connecting the electric pump and the float/pressure control switches
- Terminals without potential for controlling alarm and remote installation of an audible/visual alarm
- Switch on the front panel for manual operation – 0 – Automatic
- Amperometric protection reports
- Pump running indicator
- Voltage indicator
- Protection degree: IP55
- FRONT PANEL NOTIFICATION:
- Red lamp, overload protection activation
- Green lamp, pump in operation
- White lamp, auxiliary circuits working correctly
- Red lamp, dry run or maximum pressure
